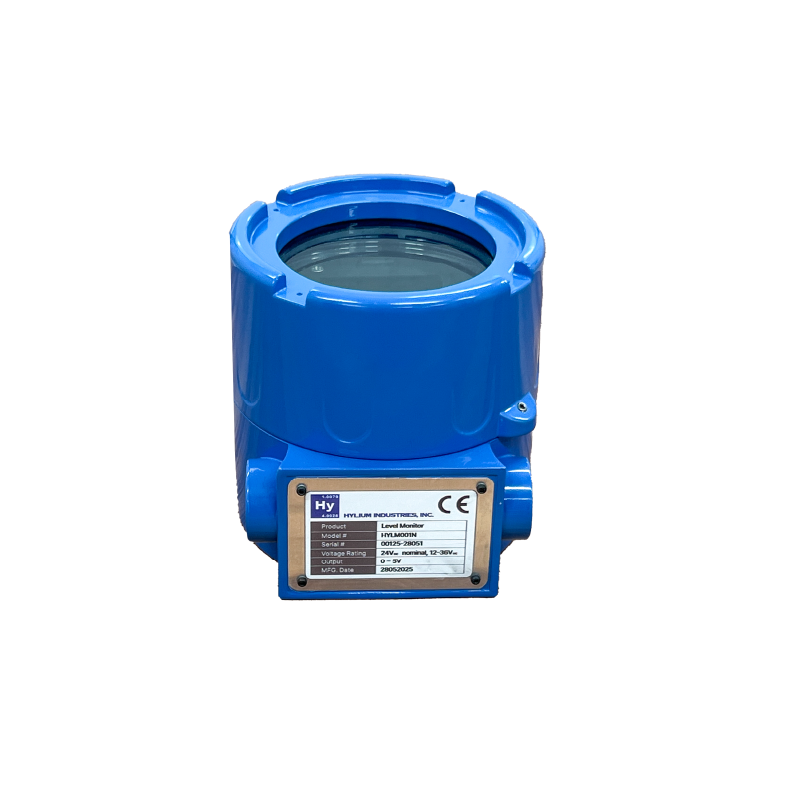

| HYLM001N (Cryogenics Fluid Level monitor) |
| Features | - Fluid : Cryogenic / Liquid hydrogen (LH2)Temperature : -269 ℃ to 200 ℃
- Pressure : 1.0 ~ 20 bar (Only Level sensor)
- Level Sensor and Monitor Connection Method : BNC Connector
- Display 2.4” 240 X 320 TFT
- Real-Time Data Recording Function (SD-Card)
|
| Technical Data | - Measurement Length : Min : 200mm, Max : 2000mm
- Power Supply : 7 - 24Vdc
- Capacitance Range : 10-1000pF
- Excitation Voltage : 3.3Vdc
- Measurement Resolution : 0.7pF
- Output Type (Monitor) : Analog 0-5V, 50KΩ or 265KΩ (Output Load)
|
