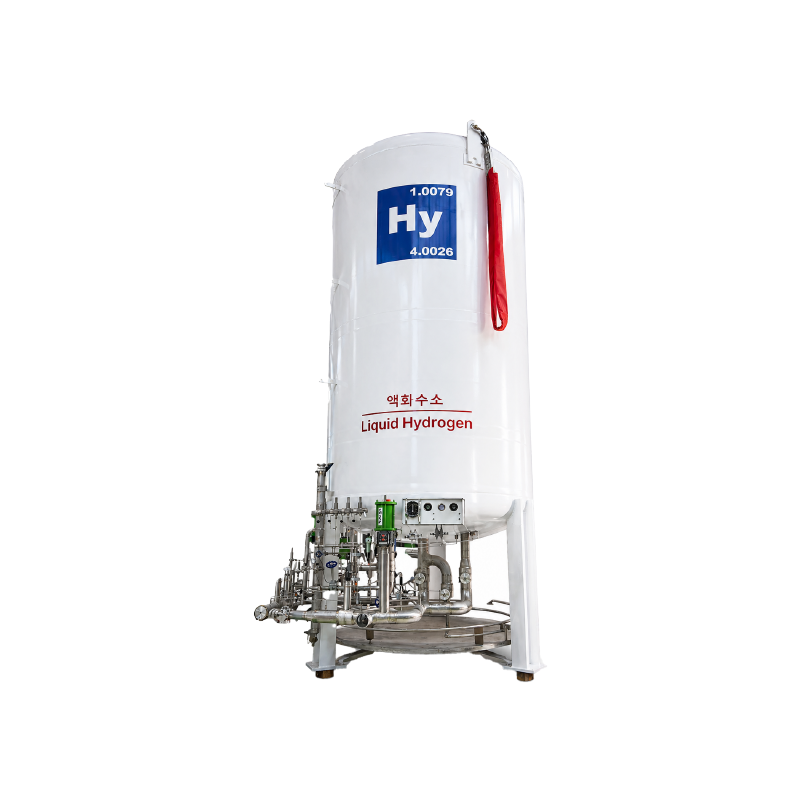

HYST100K (1t Liquid Hydrogen Bulk Storage Tank)
|
| Features | - Solutions available from 5 to 75 m³ in both vertical and horizontal configurations
- Exceptional performance with Normal Evaporation Rate (NER) of less than 1% per day
- Specialized design for pump connections
- Both standard and custom equipment available to meet your requirements
- Optional features: vaporizers, specialized pump interfaces, and more
- Certified to ASME, KGS, and PED standards; compliant with CGA andEuropean regulations
|
| Technical Data | - Tank Orientation : Vertical
- Gross Tank Capacity @ Ambient : 16 m³
- Net Tank Capacity @ Cold Temp : 15.6 m³ (Operating)
- Ullage Volume : 10 %
- LH₂ Payload (ρ ≈ 70.8 kg/m³) : 1,045 kg
- Maximum Allowable Working Pressure (MAWP) : 12 barg
- Normal Evaporation Rate (NER) : 1.0 % / day
- Length : 3.05 m
- Width / Diameter : 3.05 m
- Height : 7.67 m
- Tare Weight : 9,500 kg
- Design Temperature Range : −253 °C to +40 °C
- Design Codes / Standards : ASME VIII Div.1 / PED / KGS (other certifications available upon request)
|
