Hydrogen Storage & Transportation Tanks


Liquid Hydrogen Storage Tanks


Efficient vapor exhaust cooling system


Boil-off rates of less than 4% / day


Compact construction and patented pressurization system


Super insulation with guaranteed vacuum life of over 5 years

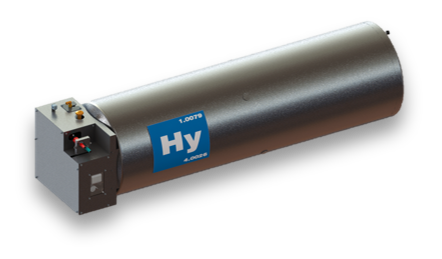

50 L Liquid Hydrogen Storage Tank

930 L Liquid Hydrogen Storage Tank

Specifications:


Net volume50 - 200 L
Total volume 52.4 - 210 L
Tank weight 89 - 186 kg
Boil-off rateMax. 4.0% / day
Operating pressure3 bar
Maximum Allowable Working Pressure10 bar


Specifications:


Net volume884 L
Total Volume930 L
Tank weight 465 kg
Boil-off rateLIN: 1% /day
Operating pressure4 barg
Maximum Allowable Working Pressure 7.2 barg


Liquid Hydrogen Fuel Tanks

Liquid Hydrogen Fuel Tank for Drones

Description:


Lightweight Liquid Hydrogen Tank for Unmanned Aerial Vehicles.


Specifications:


Net volume5 - 10 L
Total volume 6 - 12 L
Tank weight 2.0 - 4.5 kg
MaterialStainless steel, Titanium alloy
Maximum Allowable Working Pressure
5 barg


LH2 Fuel Tank for Drones (110 L)


LH2 Fuel Tank for Automobiles (40 L)


LH2 Fuel Tank for Automobiles (100 L)


LH2 Fuel Tank for Maritime (600 L)


Liquid Hydrogen Bulk Tanks and Trailer Storage

Liquid Hydrogen road tanker with customer specified tank, axles, running gear, valves and pipework systems. The most cost effective solution for storage and transportation of hydrogen infrastructure.

Specifications:


Design pressure3 - 12 barg
Storage capacity 3,000 - 39,000 L (200 - 2,500 kg)
DesignSpecially designed to fit into a 40 ft container
Pressure / Delivery system Differential pressure or pump
Tank weight2 - 12.5 tons
Boil-off rate< 1.0% / day
Design approvalsCGA, TPED, ASME, NFPA, ADR, DOT, KGS, etc.

LH2 Bulk Storage Tank (2,500 - 16,000 L)


LH2 Storage Tank (1,500 L)
