Hydrogen Refueling

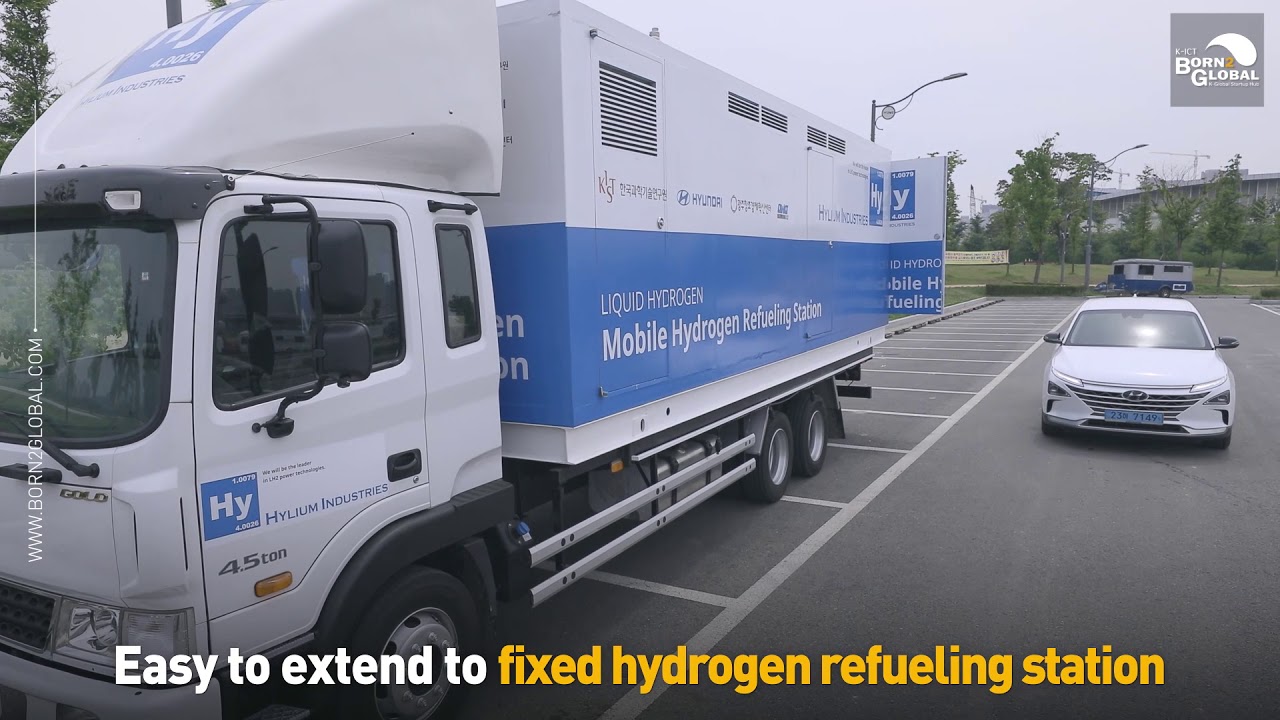

Mobile Hydrogen

Refueling Station (mHRS)

Description:


By combining liquefied hydrogen storage and transportation technologies we were able to create the world's first Mobile Hydrogen Refueling Station (mHRS).


The mHRS was created to increase refueling station availability for hydrogen FCEVs and aid the expanding hydrogen infrastructure.


Specifications:


•  Carries up to 2,500L 3-atm, low-pressure liquid hydrogen

•  800 bar liquid hydrogen pump

•  Hydrogen gas fueling for up to 25 vehicles a day at 700 bar

•  Fueling 99.99% high-purity hydrogen gas of over



Excellency in terms of safety and storage efficiency


Reduced operating and transportation costs thanks to the No Compressor, No Chiller system


Easy expansion compared to a gas  hydrogen refueling station

Liquid Hydrogen

Refueling Station

Hydrogen station refueling process:

Description:


Liquid Hydrogen Refueling Stations are the solution of the future as they are a much safer alternative to high-pressure gas hydrogen stations. Refueling with liquid hydrogen is also extremely energy efficient due to fuels' high gravimetric energy density.


Gas Hydrogen VS Liquid Hydrogen Refueling:



GH2 HRS
LH2 HRS
Storage tank pressure900 Bar2-3 Bar
Ratio of power consumption of LH2 Pump to Compressor
100%100%
Capital Expenditure Ratio100%55%
Filling
Indirect
Direct





Excellency in terms of safety and storage efficiency


Easy expansion compared to a gas  hydrogen refueling station
